Pultruded Carbon Fiber Tubes
A practical choice for repeatable continuous profiles and applications with predominantly lengthwise reinforcement requirements.
Axial stiffness · Repeatable profiles · Volume supply
CARBON FIBER TUBING · OEM SUPPLYCARBON FIBER TUBE MANUFACTURER
Carbon Fiber Tubes
Custom carbon fiber tubes for lightweight structural, industrial and OEM applications.
From process selection and custom dimensions to cutting, machining, inspection, and export packing, JUSTAR supports tube projects from prototype review through repeat production.
Custom SizesPrototype to ProductionCNC Secondary MachiningWorldwide Export
MANUFACTURING OPTIONS
Choose the tube construction around the load case.
Tube process affects fiber direction, torsional response, appearance, dimensional planning, and production economics. Final construction is confirmed from the drawing and application.
Roll-Wrapped Carbon Fiber Tubes
Built for projects that need broader fiber-orientation review, torsional considerations, or a visible woven carbon finish.
Laminate options · Torsional review · Woven finishCustom Layup Tubes
Drawing-led tube construction reviewed around geometry, load direction, surface requirements, and secondary operations.
Project dependent · Drawing review · Custom processingTECHNICAL SPECIFICATIONS

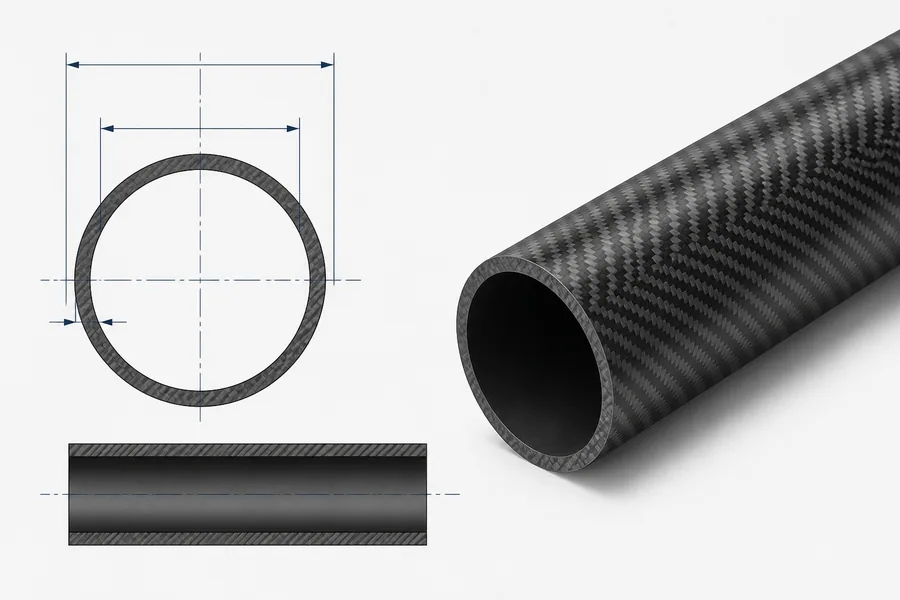

Define the tube from your drawing.
Exact dimensions and tolerances depend on the selected process, tooling, geometry, and project requirements. Values are confirmed during engineering review.
| Outer Diameter | Custom / project dependent |
|---|---|
| Inner Diameter | Custom / project dependent |
| Wall Thickness | Custom / project dependent |
| Length | Custom / cut-to-length review |
| Fiber Orientation | Pultruded, roll-wrapped, or custom layup review |
| Surface Finish | Matte, glossy, or project-dependent finish |
| Resin System | Selected according to project requirements |
| Tolerance | Confirmed from geometry, process, and drawing |
| Secondary Machining | Cutting, drilling, slots, and CNC review |
MATERIAL & PROCESS SELECTION
Pultruded or roll-wrapped?
There is no universal “best” tube. The right choice follows stiffness direction, torsion, appearance, dimensional requirements, and production volume.
| Buyer consideration | Pultruded tube | Roll-wrapped tube |
|---|---|---|
| Primary stiffness direction | Predominantly axial requirements | Multi-directional requirements reviewed by layup |
| Torsional requirements | Requires application review | Broader fiber-orientation options for review |
| Surface appearance | Typically process-led finish | Visible woven finish options |
| Dimensional approach | Repeatable continuous profile | Drawing-led laminate and geometry review |
| Production volume | Well suited to repeat profile supply | Suitable for prototype and production review |
HAVE A DRAWING OR LOAD CASE?
Let our team review the construction before you specify the tube.
CUSTOM MANUFACTURING
From tube requirement to export-ready supply.
Each operation is reviewed against the construction, drawing, quantity, and agreed acceptance criteria.
01Drawing Review
Dimensions, load direction, tolerances, finish, and secondary features are reviewed before quotation.
02Cutting & CNC Machining
Cut length, holes, slots, and machined features are assessed against the selected tube construction.
03Quality Inspection
Dimensional and appearance checks follow the agreed drawing and project acceptance criteria.
04Export Packing
Tube protection and packing are verified for the product format, quantity, and destination.
Additional project review: Bonding and assembly requirements can be assessed where the drawing, interfaces, materials, and acceptance criteria are provided.
APPLICATIONS
Carbon fiber tubing for engineered assemblies.
Application examples are illustrative. Final suitability depends on construction, load case, interfaces, environment, and acceptance requirements.
01
UAV & Drones
Lightweight airframe, boom, support, and equipment structures.
02
Robotics & Automation
Frames, arms, shafts, sensor supports, and moving assemblies.
03

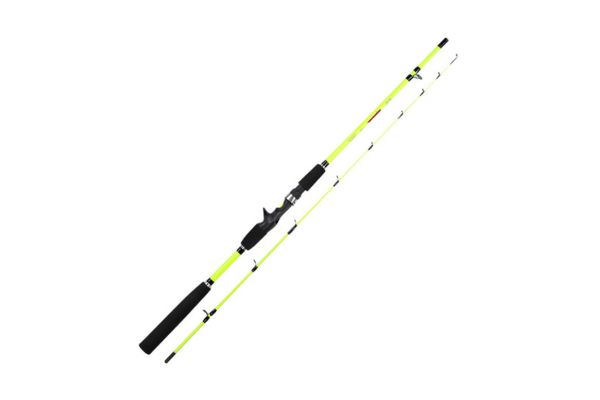

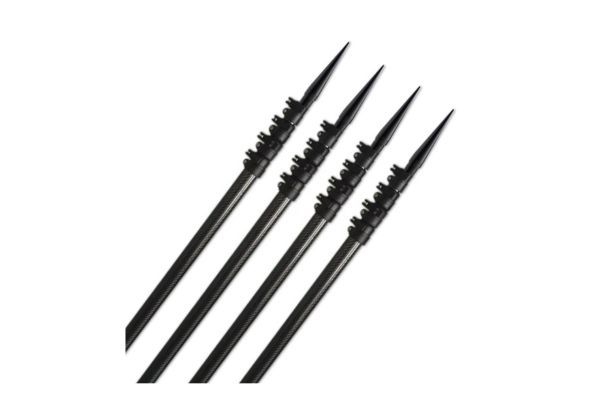

Marine Equipment
Lightweight structural and equipment-support applications.
04
Sporting Equipment
Tube-based equipment structures with weight and appearance requirements.
05
Industrial Equipment
Fixtures, instrument supports, machine structures, and engineered assemblies.
QUALITY & INSPECTION
Checks tied to the agreed requirement.
Inspection planning follows the project drawing and confirmed acceptance criteria—without unsupported certification or universal tolerance claims.
- 01
Material & process checks
Production requirements are confirmed against the selected construction and approved specification.
- 02
Dimensional inspection
OD, ID, wall, length, and machined features are checked to agreed criteria.
- 03
Appearance inspection
Surface finish, visible condition, and edges are reviewed before packing.
- 04
Packing verification
Protection, identification, quantity, and export packing are checked before shipment.
BUYER FAQ
Planning a carbon fiber tube inquiry.
Send the information you already have. Missing details can be clarified during drawing and feasibility review.
Can you manufacture carbon fiber tubes to custom dimensions?+
Yes. Outer diameter, inner diameter, wall thickness, length, finish, and tolerances are reviewed against your drawing and the selected manufacturing process.
What is the difference between pultruded and roll-wrapped tubes?+
Pultruded tubes are suited to repeatable continuous profiles and predominantly axial requirements. Roll-wrapped construction supports a broader discussion of fiber orientation, torsion, surface appearance, and laminate design.
Can you machine holes or slots after tube production?+
Tube cutting, drilling, slots, and CNC secondary machining can be reviewed from the drawing. Geometry, edge requirements, and tolerances are confirmed before quotation.
What drawings or specifications should I send?+
Send the tube section, OD and ID or wall thickness, length, tolerances, quantity, application, load direction, finish, machining features, and delivery country.
What files can I upload?+
The inquiry form accepts PDF, STEP, STP, DXF, DWG, JPG, and PNG files, up to 20 MB each and three files per inquiry.
Can you support prototypes and production quantities?+
Prototype and production requirements can both be reviewed. Tooling, process, inspection, and quantity are considered together before a supply plan is confirmed.
How are tubes packed for international shipment?+
Packing is selected around tube length, diameter, quantity, and destination. Product protection and packing verification are included before international shipment.
START A TUBE PROJECT
